Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Model Number: HT-24150 amber led off road light bar
  • Warranty: 1 Years
  • Lamp Type: LED
  • Brand Name: HANTU amber led off road light bar
  • Certification: CE,ROHS, IP67
  • Voltage: 9-32V
  • Body color: Balck
  • Material: Aluminum housing and PC lens
  • Size: 765*108*75mm
  • Power: 150W
  • LED chips: 15*10W
  • Beam type: combo
  • Light color: White +yellow
  • Box size: 86.5*13*15cm
  • Carton size: 88*28*32cm
  • Type: Headlight

Packaging & Delivery

Packaging Details 1pc wrapped with foam;then in each box;
4 boxes in a carton;
Packing size:88*28*32cm;4pcs/ctn; N.W.:3.4kgs; G.W.:15.6kgs
Delivery Time Shipped in 7 days after payment

Payment & Delivery& Shipment


Payment:  Western Union for sample order; TT for bulk order;  30% downpayment for confirmed order; 70% balance for delivery.


Delivery: 1 week for sample order;2-4 weeks for bulk order after order confirmed.


Shipment: We can express it by Fedex,UPS,DHL,or EMS for sample order. And delivery in FOB&CIF Guangzhoug for bulk order.




New style amber led off road light bar curved 150W strobe auto light with remote control


Power 150W
LED chips 15pcs*10w     CREE LED
Operating voltage 9-32V DC
Color temperature 6500K
Beam type Spot,Flood,Combo
Size 765*108*75mm
Life span 50000 hours
Lumens output 12000 lm
Working temperature -45ºC~85ºC
Body color Black or camouflage
Standard CE ROHS IP67
Mounting Bracket  Stainless steel bracket
Lens material Toughened PC
Housing Die-Cast aluminum




New style amber led off road light bar curved 150W strobe auto light with remote control


                                            LED CHIPS

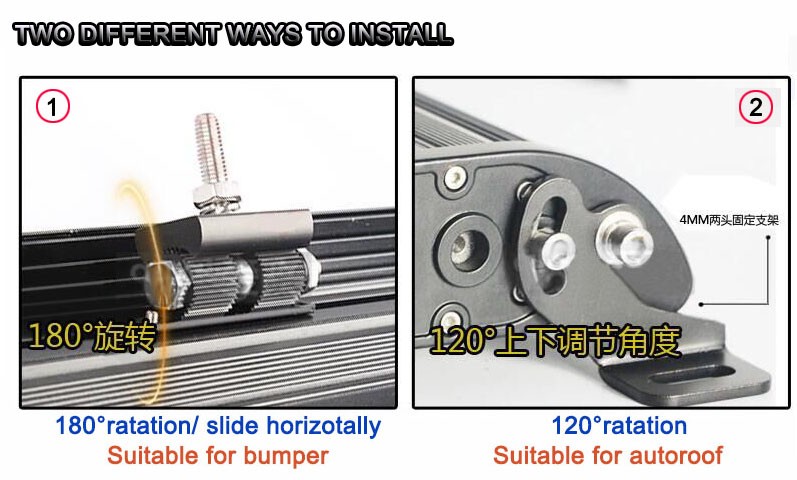

With two different installation for bracket for this LED light bar.


with two different bracket as below:


                                          BEAM TYPE

The Different Types of led light bar Beam Patterns

LED Spot Beam : 10 Degree (Narrow Beam) is a concentrated light pattern that is narrow yet very long. This

 led light bar pattern produces more of an intense centre spot which lights up objects right in front of you, while sacrificing some side light. 10 degree spot beam is great for long distance Highway driving.

LED Euro Beam : 30 Degree (Medium Beam) is designed to produce a very strong beam of light with wider

coverage than the 10 degree spot pattern. This LED light pattern is designed to illuminate the side of the road

while giving you good distance, which makes this a good off road light

LED Flood Beam : 60 Degree (Wide Beam) is much wider LED light pattern than the Euro or Spot but has a

shorter reach. This is great for dispersing light and lighting up larger amounts of space on the track in front of you rather than far into the distance, making the led Flood light bar ideal for low range 4×4 driving, frequent off-road use, tractor work light and mining light.

Combo Beam : Both Spot & Flood combination, This is a great all round led light pattern giving you distance and flood light. Combo beam is the most popular and widely use on led light bars




New style amber led off road light bar curved 150W strobe auto light with remote control

                                              10W CREE series

We have four different models of 10W cree chips. More options as below :




New style amber led off road light bar curved 150W strobe auto light with remote control


 From 8.9"(30W) to 56.7"(300W) , There is always a suitable for your car!

Model   Size (mm)Watts  Lumens (lm)Material&StandardN.W.    (kgs)G.W.  (kgs)Box size (cm)



Packing size (cm)





Material:Alu-alloy house,PC Lens,stainless steel Bracket ;

Mark:with alu-alloy strip for frame ;                                  Standard: CE; ROHS; IP67 ;    LED Chip:CREE;

Voltage: 9-60V DC ;


Combo ;

Color Temperature:6500K ;  Lifespam:50000 hours;   Color:black and camouflage;

2.8013.20 61*13*15463*42*33
3.40 15.60 86.5*13*15488*28*32
HT-24180900*108*7510W*18pcs144004.00 18.0096*13*15488*28*42
HT-24210 1035*108*7510W*21pcs168004.60 20.90 112*13*154114*28*42
HT-24240 1170*108*7510W*24pcs192005.20 23.80 123*13*154 114*28*42
HT-24270 1305*108*7510W*27pcs216005.80 14.60 132.5*13*152134*28*22
HT-243001440*108*7510W*30pcs240006.50 16.00 144.5*13*15    2146*28*33



New style amber led off road light bar curved 150W strobe auto light with remote control


Step1:  Packed in pearl cotton,and spare parts in poly bag.

Step2: Put in a paper box,make sure very stable,not loose.

Step3: Cover by sponge,put parts on and lock the box.

Step4: Then several boxes in a suitable carton.





New style amber led off road light bar curved 150W strobe auto light with remote control



  • Total LED power ranges from 15 watts up to 312 watts, and size up to 54”
  • Thicker die-cast aluminum housing, design for better heat resistant.
  • Premium PC lens imported from South Korea for abrasion resistant.
  • Stainless Steel adjustable mounting brackets.
  • LED chips imported from USA.(CREE LED)
  • 60° Flood Beam and 30° Spot Beam Combo provides wider, further lighting
  •  Energy-efficient and low power consumption.
  • Waterproof, dust proof, durable and vibration resistant.
  • Suitable for different types of trucks, off- road vehicles, 4x4, boating, marine deck lighting,
    caravan awning lighting, farming, heavy equipment etc.






Q1. Are you manufacturer or trading company?

 A1. We are the manufacturer for auto LED lights. And we have our own housing shell factory. So we have the advantage of quality and price and delivery.

 Q2: What is the warranty?

 A2: One-year warranty. If your item has been damaged in transit, please e- mail us with pictures or
 a video clip to show the problem.And free parts can be provided for damage product during the warranty.


Q3: What is the MOQ for your products?

 A3: MOQ: 50PCS which can have our wholesale price


Q4: How can I pay you?

 A4: Western Union for small order and Bank transfer T/T for bulk orders.


Q5: What is the lead time?

 A5: 2-3 days for sample order; 3-4 weeks for bulk orders.


Q6: How do you ship my order?

A6: UPS/DHL/FEX is your option for sample order. It takes 4-7 days by express except for remote erea.

      Bulk order can be shipped in FOB Guangzhou or CIF your port.
